Most model aircraft fliers tend to fly from specific, designated sites and as part of a club environment which is clearly the best way to learn and get most out of the sport. However, ‘solo’ flight from other locations is also possible provided that the models are operated in accordance with the requirements of the law and are flown with respect to the safety of other people and aircraft.

The regulations for model aircraft and drone flights are contained within the Air Navigation Order  (ANO) which is the primary document for all aviation regulations within the United Kingdom.  In order to keep the regulations at a proportionate level for smaller models, a set of specific, simpler, regulations apply to aircraft that have a mass of 20kg or less (which are termed ‘small unmanned aircraft’ within the ANO).

In simple terms, these regulations state that:

• You are responsible for flying your model aircraft in a safe manner
• You must keep the model aircraft in your direct sight at all times while it is flying, so that you can ensure that it does not collide with anything, especially other aircraft
• You must not endanger anyone, or any thing with your model aircraft, including any articles that you drop from it
• You must not fly at a height greater than 400ft above the surface unless permitted to by the CAA  – see further details below
• You must not fly within the Flight Restriction Zone of a protected aerodrome

The full regulations that relate to model aircraft and drones are shown below.

[ultimate-faqs include_category=’ano’]

Article 94A – 400ft height limitation interpretation

A small unmanned aircraft is defined as ‘any unmanned aircraft, other than a balloon or a kite, having a mass of not more than 20 kg without its fuel but including any articles or equipment installed in or attached to the aircraft at the commencement of its flight’.

An ‘SUA operator’, in relation to a small unmanned aircraft, is the person who has the management of the small unmanned aircraft.

A congested area means, ‘in relation to a city, town or settlement, any area which is substantially used for residential, commercial, industrial or recreational purposes’.

These rules have been established to provide a safe environment in which small drones can be flown without coming into conflict with manned aircraft and without risk to other people or properties.

You must have a Permission issued by the CAA before you conduct any commercial operations with your drone.

Indoor use – The applicability of the regulations regarding flights within buildings has been clarified recently.  Under the CAA Act 1982, the Air Navigation Order is made for the purposes of regulating air navigation.  Flights inside buildings have nothing to do with air navigation because they can have no effect on flights by aircraft in the open air.  As a result, flights within buildings, or within areas where there is no possibility for the unmanned aircraft to ‘escape’ into the open air (such as a ‘closed’ netted structure) are not subject to air navigation legislation.  Persons intending to operate drones indoors should refer to the appropriate Health and Safety At Work regulations.

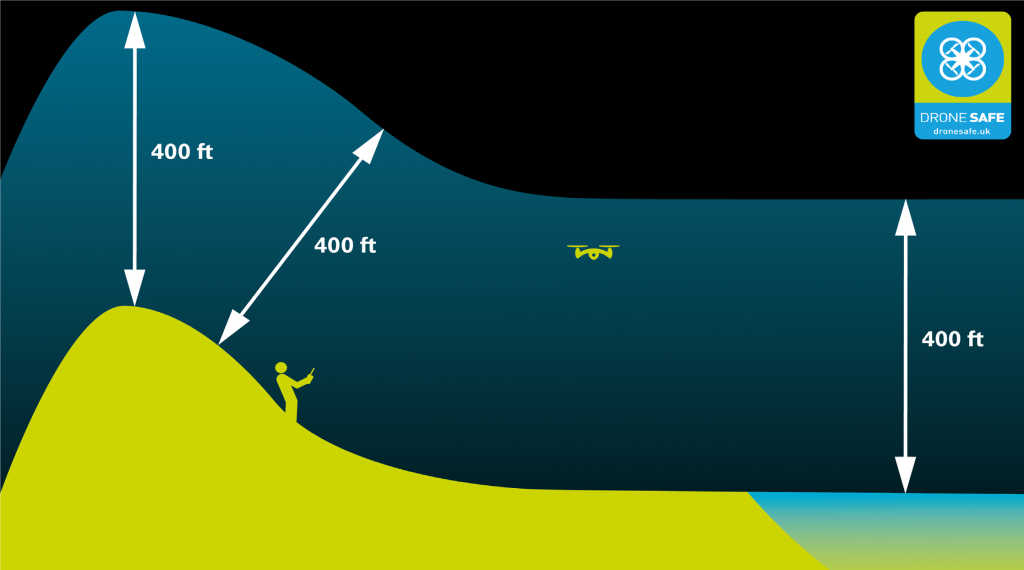

In aviation terms, ‘height’ means the vertical distance of an object (in this case the small unmanned aircraft) from a specified point of datum (in this case above the surface of the earth). To cater for the few occasions where a small unmanned aircraft is being flown over hilly/undulating terrain or close to a cliff edge, the 400 ft height above the surface requirement may be interpreted as being a requirement to remain within a 400 ft distance from the surface, as shown in the diagram below. For the purposes of Article 94A, this is considered to be an acceptable means of compliance with the legal requirement.

Remember that the limitation applies to ‘heights above/distances from’ the surface of the earth. It does not automatically apply to heights/distances from tall buildings or other structures: in such cases, an additional permission from the CAA will be required, which will invariably also require permission to operate within a congested area.

First Person View

Unmanned aircraft that are fitted with video cameras often provide an opportunity to downlink ‘live’ video to the remote pilot either via a mobile phone, tablet computer or other screen, or even through video goggles – this capability provides the pilot with a pseudo ‘pilots eye view’ from the UAS itself and is generally given the term ‘First Person view’ (FPV).

However, the law [at ANO article 94(3)] requires that the remote pilot must maintain direct unaided visual contact with the aircraft which is sufficient to monitor its flight path so that collisions may be avoided.  This is obviously not possible if that person is wearing video goggles or otherwise constantly monitoring a display.  Therefore, FPV flight is only permitted if the activity has been approved by the CAA. A General Exemption has been issued which allows an element of ‘First Person View’ (FPV) flight to be conducted. If you wish to conduct an FPV flight which cannot be accommodated within the terms of this General Exemption, then you will need to apply to the CAA for an Exemption to do so.

Note: Images captured by a camera and displayed on a flat screen afford the pilot little by way of depth perception and no peripheral vision. This can make it difficult for the pilot to accurately judge speed and distance and to maintain sufficient awareness of the area surrounding the aircraft to effectively ‘see and avoid’ obstacles and other aircraft – as a result, the use of FPV equipment is not an acceptable mitigation for Beyond Visual Line of Sight flight unless the relevant operator has received a specific approval to do so from the CAA.

Indoor use

The applicability of the regulations with regard to flights within buildings has been clarified recently.  Under the CAA Act 1982, the Air Navigation Order is made for the purposes of regulating air navigation.  Flights inside buildings have nothing to do with air navigation because they can have no effect on flights by aircraft in the open air.  As a result, flights within buildings, or within areas where there is no possibility for the unmanned aircraft to ‘escape’ into the open air (such as a ‘closed’ netted structure) are not subject to air navigation legislation.  Persons intending to operate unmanned aircraft indoors should refer to the appropriate Health and Safety At Work regulations.
